Case
diameter :
40, 63, 100, 160 mm
Range
of measure:
equal
to dial range
Accuracy
class :
- standard: 2
- alternatively: 1
Degree
of case protection:
-
standard: IP 41
-
alternatively: IP 65
Pressure
rating
of
thermowell :
1 MPa

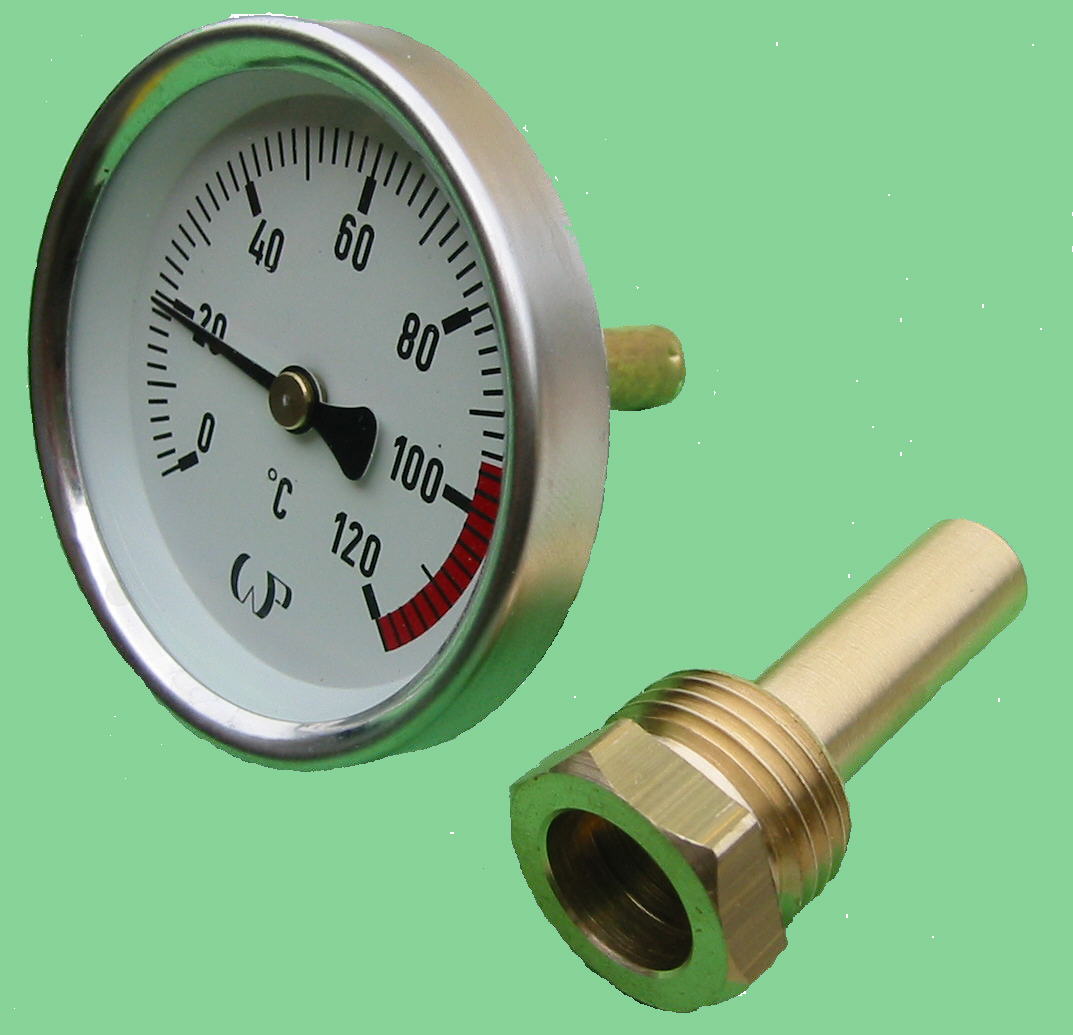

DESIGN
Bezel:
restless
steel 1.4016
Case:
zinc
coated steel
Window:
glass
Dial:
white
aluminium with black
or color lettering
Stem:
brass
Connection:
brass
thermowell
|
Scale range degrees of Celsius |
Scale spacing degrees of Celsius |
|
-50...+50 -30...+50 -20...+60 0...60 |
1 |
|
0...100 0...120 0...150 0...160 |
2 |
|
0...200 0...250 0...300 |
5 |
|
0...400 0...500 |
10 |
|
or other scale ranges acc. to customer requirements
Ordering information
- case diameter: TB-40, TB-63, TB-100 or TB-160 - scale range - stem length as: R50 means L = 50 mm with thermowell L50 means L = 50 mm without thermowell for example: TB-63/120/R50
If you don't write size of connection, we'll make thermowell with standard G 1/2" thread. If you need other thread, please write it down, for example: TB-63/120/R50 M20x1,5 |
|
